PA1015C7 Powe supply/Powe alimentazione/alimentation Powe/Powe Versorgung/Powe suministro/Powe ellátás/Powe tarjonnan/powe de alimentare/ Powe питания,Switching power supplies, AC adapter, power adapter with UK AC power cord China power adapter factory

Powe supply/Powe alimentazione/alimentation Powe/Powe Versorgung/Powe suministro/Powe ellátás/Powe tarjonnan/powe de alimentare/ Powe питания

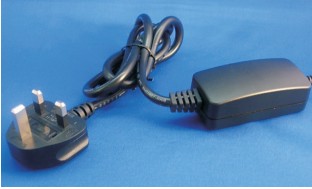

Model: PA1015C7
Switching power supplies, AC adapter, power adapter with UK AC power cord
Input: 90-264v AC 47-63Hz, 0.4a Max. ; Output voltage: 3-30V DC
Inrush current: 40a Max.
Line Current: 1% Max.
Efficiency: 70-82%
output voltage: 3.0-4.5v/ Max. 2.6a, output power 18w Max.
output voltage: 4.6-6.9v/ Max, 2.6a, output power 18w Max.
output voltage: 7.0-10.0v/ Max.2.15a, output power 18w Max.
output voltage: 10.1-14.9v/ Max.1.48a, output power 18w Max.
output voltage: 15.0-21.0v Max. 1.0a, output power 18w Max.
output voltage: 21.1-30.0v Max. 0.72a output power 18w Max.
Safety: UL, CUL, TUV, CB, CE, FCC, PSE, C-TICK, BSMI
RoHS and CEC compliant
